An informative and transperant method of function
display and control, that provides the operator
with a clear overview of the implemented functions,
is of great importance for the reliable control
and monitoring of technical proceesses. Mosaic systems
are particular suited for this task. The modular
design allows a cost effective use that excat fits
the specific requirements of the plant. Future expansion
and modification can be achieved without great effort.

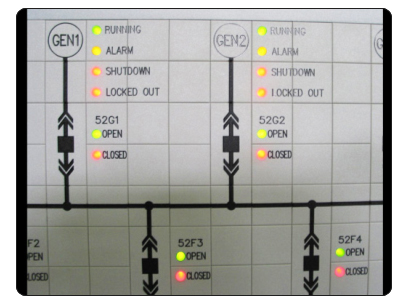

Mimic & Graphic display systems are installed
in numerous control rooms all over the world.
MIMIC is the exact or approximate
representation of any process plant for which
the control panel and desk is going to be used.These
representations make it easy to control and viewing
the whole plant from one place only. The mimic
helps in identification of exact location of faults
at working on the moment it occurs,and is easy
for maintenance. Mimic Panels find their application
in various process plants like: Ash Handling,
Cement plants, Railways, Petro-chemicals, Utilities,
Iron and Steel, Distribution SCADA.
