manufacture these with use of optimum quality raw

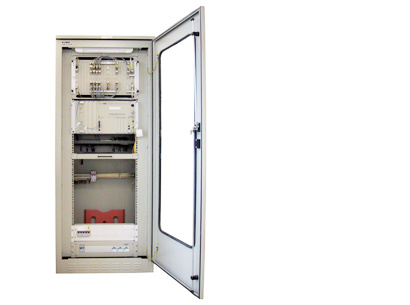

Marshalling Boxes/Kiosks/Junction boxes are used
in substation switchyards provided with Terminal
Blocks to which control cables are connected. Marshalling
means grouping of I/Os. Marshalling panel is placed
between the DCS system panel and field instruments.
In marshalling panel grouping of I/Os like Analog
Input, Analog Output, Digital Input, Digital Output
and Pulse I/O are done.From marshalling panel the
I/O signals are communicated to the system CPU/Controllers
through Isolation/Signal conditioners.
In marshalling panel we can easily identify the
Input or Output and easy diagnosis can be done in
case of fault finding. marshalling panels are used
as interface between field junction box & dcs
